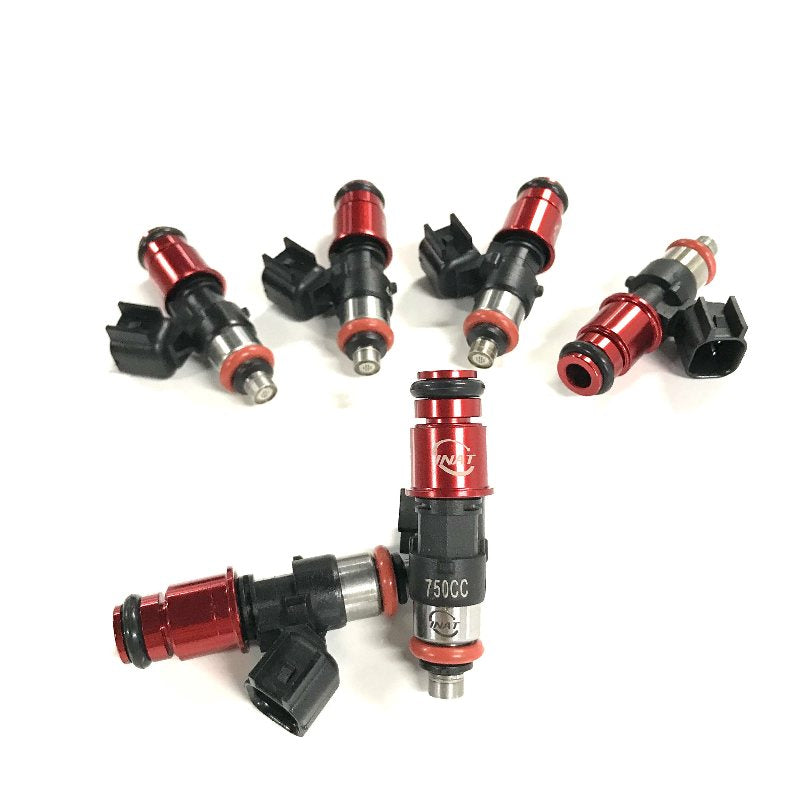

6pcs 750cc Injectors 72lb for Nissan 2003-2006 350Z VQ35DE 2007-2008 VQ35HR 3.5L V6
6pcs 750cc Injectors 72lb for Nissan 2003-2006 350Z VQ35DE 2007-2008 VQ35HR 3.5L V6
- Note Color (Black/Red/Purple);
- FREE SHIPPING!
- Ship within 1~2 business days;
- Connector: EV6 / DENSO;
- Flow Matched within 1%;
- Datasheet Comes with Injectors;
- Lifetime Warranty;
- USA Tech Support;
These 750cc injectors are sold in set of 6. They are suitable for EV6 to denso plugs and are E85 fuel available. Set of 6 72lb injectors including 14mm black/purple/red adapter tops, 14mm bottom o-rings, plugs and pins. Direct plug and play for 2003-2006 Nissan 350Z 3.5 VQ35DE, 2007-2008 Nissan 350Z 3.5 VQ35HR, 2003-2007 Infiniti G35, 2004-2007 Nissan Murano, 2001-2009 Nissan Patrol with engine 3.5L 3498CC V6 GAS DOHC naturally aspirated. They will be tested by ASNU machines before shipment, and the dynamic flow matching is within 1%.
Our injectors are high impedance injectors based on Bosch EV6 with the latest injector technology. They are divided into groups of 1% static (I.E. full current) and 2% dynamic (I.E. pulse) matching.
Product Parameters:
*WARNING: The fuel lines must be cleaned before replacing the fuel injectors.
Overall length: 65mm |
O-ring seat to seat dimension: 48mm |
Top/Bottom o-ring: 14mm |
O-ring centerline to centerline dimension: 53mm |
Includes: plastic packaging box, injectors, o-rings, datasheet, ev6 to ev1/denso/obd2 connectors ( plug and play), top hats. (According to the actual situation of the product) |
* If you do not note the adapter color, we will ship them randomly.
Condition: 100% brand new |
Test: Leak, flow, pressure, spray |
Interior design: Metal and composite plastic |
Filter design: Basket filter design at inlet |
Static flow rate: @43.5PSI ( 300kPa ) 80% duty |
Coil resistance: 9 Ohms high impedance |
Gain: 0.12ms/MG |
Offset: 0.055ms |
Turn on time: 1.14ms @ 14VDC |
Turn off time: 0.85ms @ 300KPa |
Amperage: 1.0 Amps |
Pressure: Min 30PSIG/ Max 100PSIG |
