SEMA 2024 No.22628

8pcs LS3 Injectors for 2010–2015 Chevrolet Camaro SS Manual Only E85

8pcs LS3 Injectors for 2010–2015 Chevrolet Camaro SS Manual Only E85

Regular price $220.00 USD
Regular price $360.00 USD Sale price $220.00 USD
Sale Sold out
Shipping calculated at checkout.
Flow Rate
  • FREE SHIPPING!
  • Ship within 1~2 business days;
  • Connector: EV6 / EV14;
  • Flow Matched within 1%;
  • Datasheet Comes with Injectors;
  • Lifetime Warranty;
  • USA Tech Support;

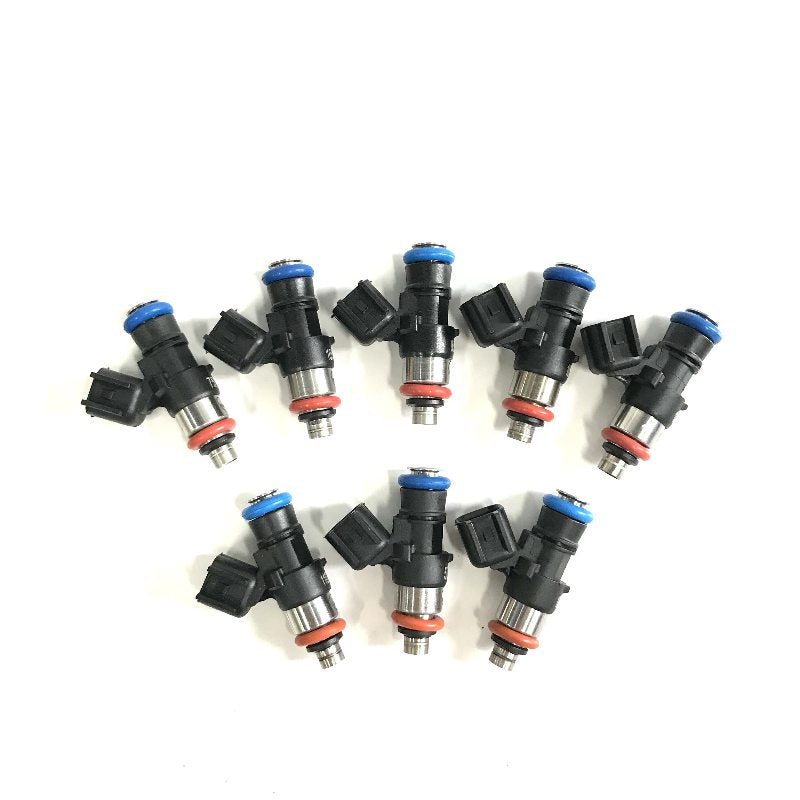

Set of 8 fuel injectors, 49mm overall length, 34mm o-ring seat to seat dimension, 14mm top and bottom o-rings. Direct Plug and play for ls3 engine including 2010–2015 Chevrolet Camaro SS manual only, 2014–2017 Chevrolet SS, 2011 Jensen Interceptor R, 2008–2013 Chevrolet Corvette. The range of e85 fuel injectors suits your engine, such as 440cc, 850cc, 1000cc, 1200cc, 1250cc, 1500cc, 1600cc, 1700cc, 2200cc injectors!

Superior short pulse width control and tight manufacturing tolerances make these injectors easy to tune and provide great drivability. We focus on high quality car fuel injectors over 10 years!

Product Parameters:

*WARNING: The fuel lines must be cleaned before replacing the fuel injectors.

Overall length: 49mm

O-rings (top and bottom): 14mm

O-ring centerline to centerline dimension: 38mm

O-ring seat to seat dimension: 34mm

Includes: plastic packaging box, injectors, o-rings, datasheet, ev6 to ev1/denso/obd2 connectors ( plug and play). (According to the actual situation of the product)

*Please choose the plug or connector according to your actual situation. If you need other flow rates, please contact us online. We will get back to you soon and help you order the right injectors.

Condition: 100% brand new

Test: Leak, flow, pressure, spray

Interior design: Metal and composite plastic

Filter design: Basket filter design at inlet

Static flow rate: @43.5PSI ( 300kPa ) 80% duty

Coil resistance: 9 Ohms high impedance

Gain: 0.12ms/MG

Offset: 0.055ms

Turn on time: 1.14ms @ 14VDC

Turn off time: 0.85ms @ 300KPa

Amperage: 1.0 Amps

Pressure: Min 30PSIG/ Max 100PSIG

*We have ASNU testing machine to do a strong test on the injector before shipment, and the dynamic flow matching is within 1%. One-stop services and quality assurance!
