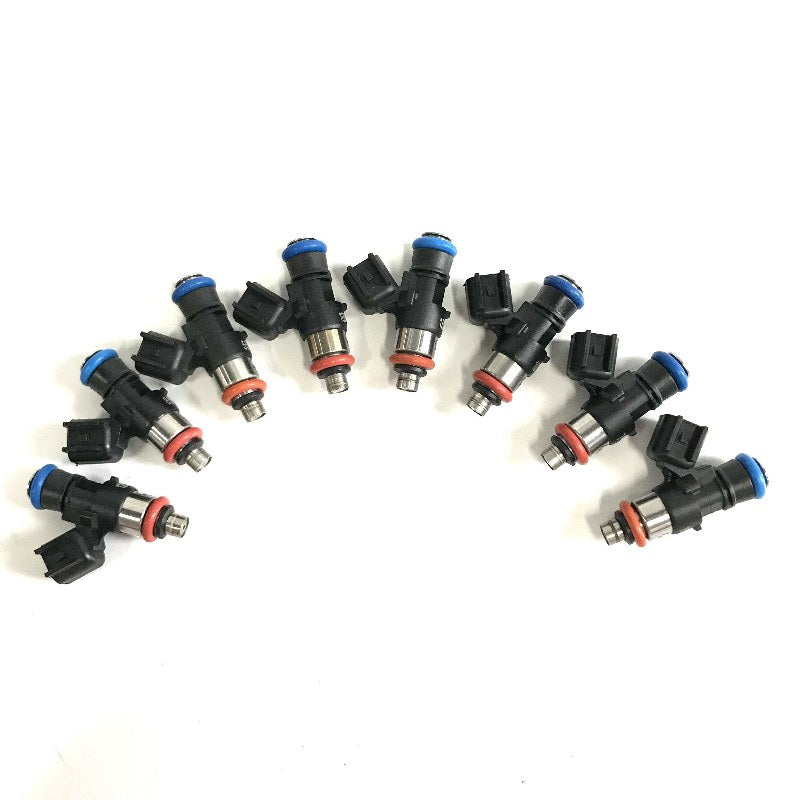

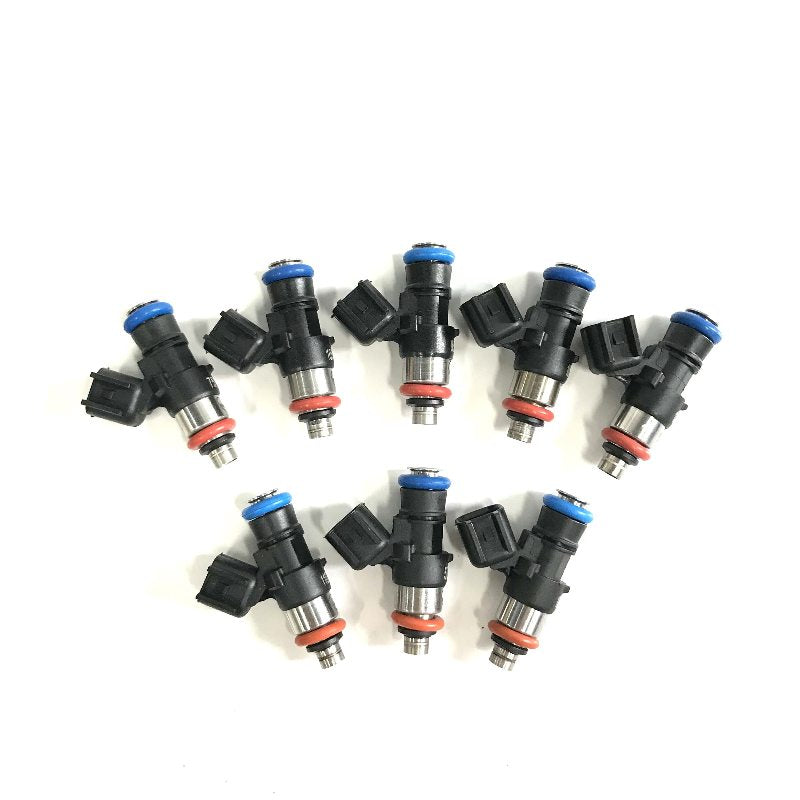

Set of 8 High Impedance EV6 Injectors for LSA LS3 LS4 LS7 L76 L99 LS9

Set of 8 High Impedance EV6 Injectors for LSA LS3 LS4 LS7 L76 L99 LS9

Regular price $220.00 USD
Regular price $360.00 USD Sale price $220.00 USD
Sale Sold out
Shipping calculated at checkout.
Flow Rate

FREE SHIPPING!Ship within 1~2 business days;

Set of 8 fuel injectors, 49mm overall length, 34mm o-ring seat to seat dimension, 14mm top and bottom o-rings, plugs and pins. Direct plug and play for LSA LS3 LS4 LS7 L76 L99 LS9 engine. The car fuel injectors are supplied with flow rates from 440cc 42lb to 2200cc 210lb.

Product Parameters:

*WARNING: The fuel lines must be cleaned before replacing the fuel injectors.

Overall length: 49mm

Orings (top and bottom): 14mm

O-ring centerline to centerline dimension: 38mm

O-ring seat to seat dimension: 34mm

Includes: plastic packaging box, injectors, o-rings, datasheet, ev6 to ev1 connectors ( plug and play). (According to the actual situation of the product)

*Please make sure that you are choosing the correct length for your fitment needs.

Condition: 100% brand new

Test: Leak, flow, pressure, spray

Interior design: Metal and composite plastic

Filter design: Basket filter design at inlet

Static flow rate: @43.5PSI ( 300kPa ) 80% duty

Coil resistance: 9 Ohms high impedance

Gain: 0.12ms/MG

Offset: 0.055ms

Turn on time: 1.14ms @ 14VDC

Turn off time: 0.85ms @ 300KPa

Amperage: 1.0 Amps

Pressure: Min 30PSIG/ Max 100PSIG
