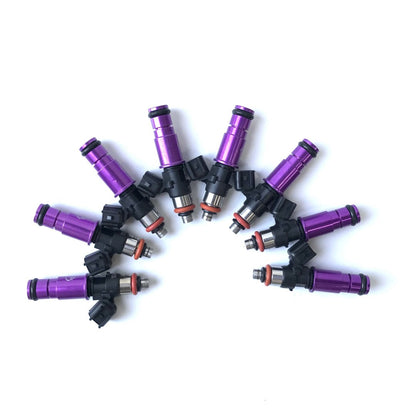

8pcs Fuel Injectors Fit Ford Mustang Boss 302 2012-2013 14mm E85
8pcs Fuel Injectors Fit Ford Mustang Boss 302 2012-2013 14mm E85
Couldn't load pickup availability
- FREE SHIPPING!
- Ship within 1~2 business days;
- Connector: EV6, EV14, EV1, Denso, OBD2;
- Datasheet Comes with Injectors;
- Flow Matched within 1%;
- Lifetime Warranty;
- USA Tech Support;
INAT Auto Parts offers the entire range of fuel injectors to suit your engine! They have amazing idle quality, great driveability and smoothness.
These injectors utilize the latest technology and provide great linearity and short pulse width repeatability. They can effectively increase auto power and reduce fuel consumption, thereby helping you win races on fierce race tracks.
Product Parameters:
*WARNING: Before using the fuel injectors, the fuel lines must be cleaned.
|
Overall length: 77mm |
O-ring seat to seat dimension: 60mm |
|
Top/Bottom o-ring: 14mm |
O-ring centerline to centerline Dimension: 65mm |
|
Includes: plastic packaging box, injectors, o-rings, datasheet, ev6 to ev1/denso/obd2 connectors ( plug and play), top hats. (According to the actual situation of the product) |
|
*Please make sure that you are choosing the correct length for your fitment needs.
|
Condition: 100% brand new |
Test: Leak, flow, pressure, spray |
|
Interior design: Metal and composite plastic |
Filter design: Basket filter design at inlet |
|
Static flow rate: @43.5PSI ( 300kPa ) 80% duty |
Coil resistance: 9 Ohms high impedance |
|
Gain: 0.12ms/MG |
Offset: 0.055ms |
|
Turn on time: 1.14ms @ 14VDC |
Turn off time: 0.85ms @ 300KPa |
|
Amperage: 1.0 Amps |
Pressure: Min 30PSIG/ Max 100PSIG |
*INAT Auto Parts supplies the popular injectors to suit your engine, such as 440cc, 850cc, 1000cc, 1200cc, 1250cc, 1500cc, 1600cc, 1700cc fuel injectors! If you need other flow rates, you can contact us online. We will reply to you quickly and help you order suitable injectors.
