SEMA 2024 No.22628

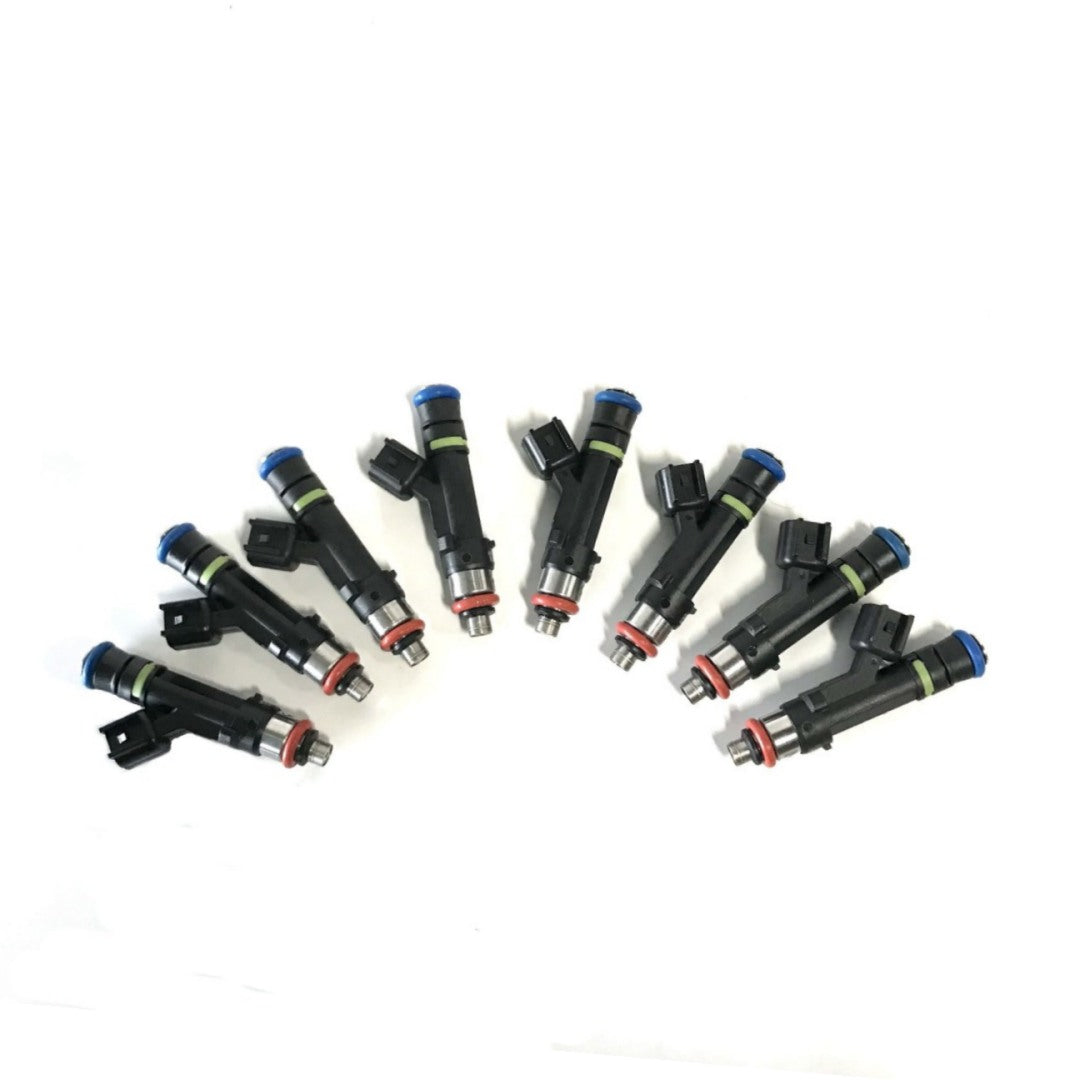

8pcs Long Style Fuel Injectors Fit Pontiac GTO 2004 LS1 Car Upgrades

8pcs Long Style Fuel Injectors Fit Pontiac GTO 2004 LS1 Car Upgrades

Regular price $268.00 USD
Regular price $378.00 USD Sale price $268.00 USD
Sale Sold out
Shipping calculated at checkout.
Flow Rates
  • FREE SHIPPING!Ship within 1~2 business days;
  • E85 Available;
  • Connector: EV6 / EV14 / EV1
  • Flow Matched within 1%;
  • Datasheet Comes with Injectors;
  • Lifetime Warranty;
  • USA Tech Support;

These LS1 fuel injectors can be used for E85 fuel and can effectively increase vehicle power. They are capable of operating at high fuel pressures and do not suffer from the high fuel pressure handling issues present with many other high flow, high impedance injectors.

We have ASNU testing machine to do a strong test on the injectors before shipment, and the dynamic flow matching is within 1%.

Product Parameters:

*WARNING: The fuel lines must be cleaned before replacing the fuel injectors.

Overall length: 77mm

Orings (top and bottom): 14mm

O-ring centerline to centerline dimension: 65mm

O-ring seat to seat dimension: 60mm

Condition: 100% brand new

Test: Leak, flow, pressure, spray

Interior design: Metal and composite plastic

Filter design: Basket filter design at inlet

Static flow rate: @43.5PSI ( 300kPa ) 80% duty

Coil resistance: 9 Ohms high impedance

Gain: 0.12ms/MG

Offset: 0.055ms

Turn on time: 1.14ms @ 14VDC

Turn off time: 0.85ms @ 300KPa

Amperage: 1.0 Amps

Pressure: Min 30PSIG/ Max 100PSIG

Includes: plastic packaging box, injectors, o-rings, datasheet, ev6 to ev1/denso/obd2 connectors ( plug and play). (According to the actual situation of the product)

*The flow rate of the injectors is from 440cc to 2200cc, with popular flow rates such as 650cc, 850cc, 1000cc, 1050cc, 1200cc, etc. If you need other fuel injectors with different flow rates, please contact us online.
