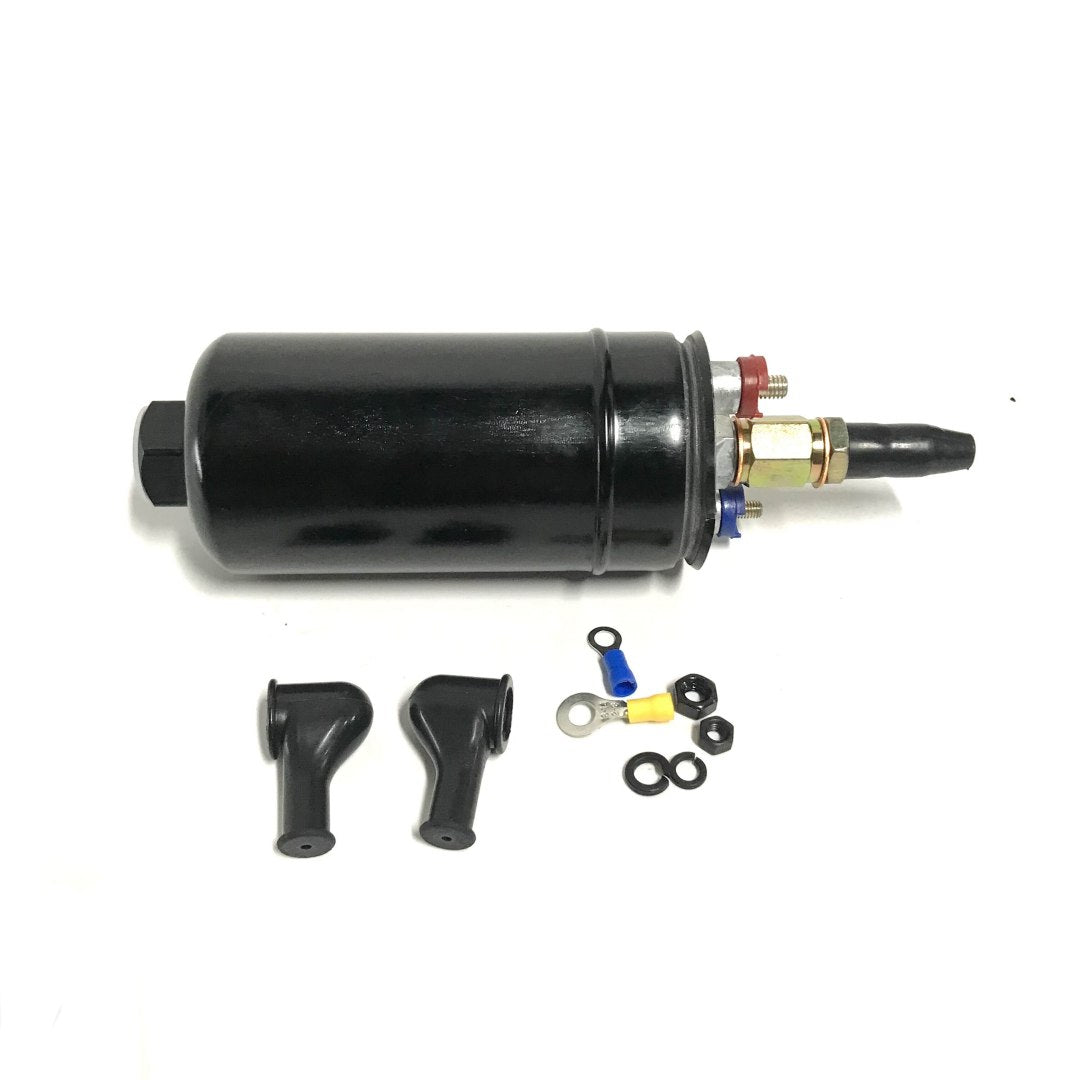

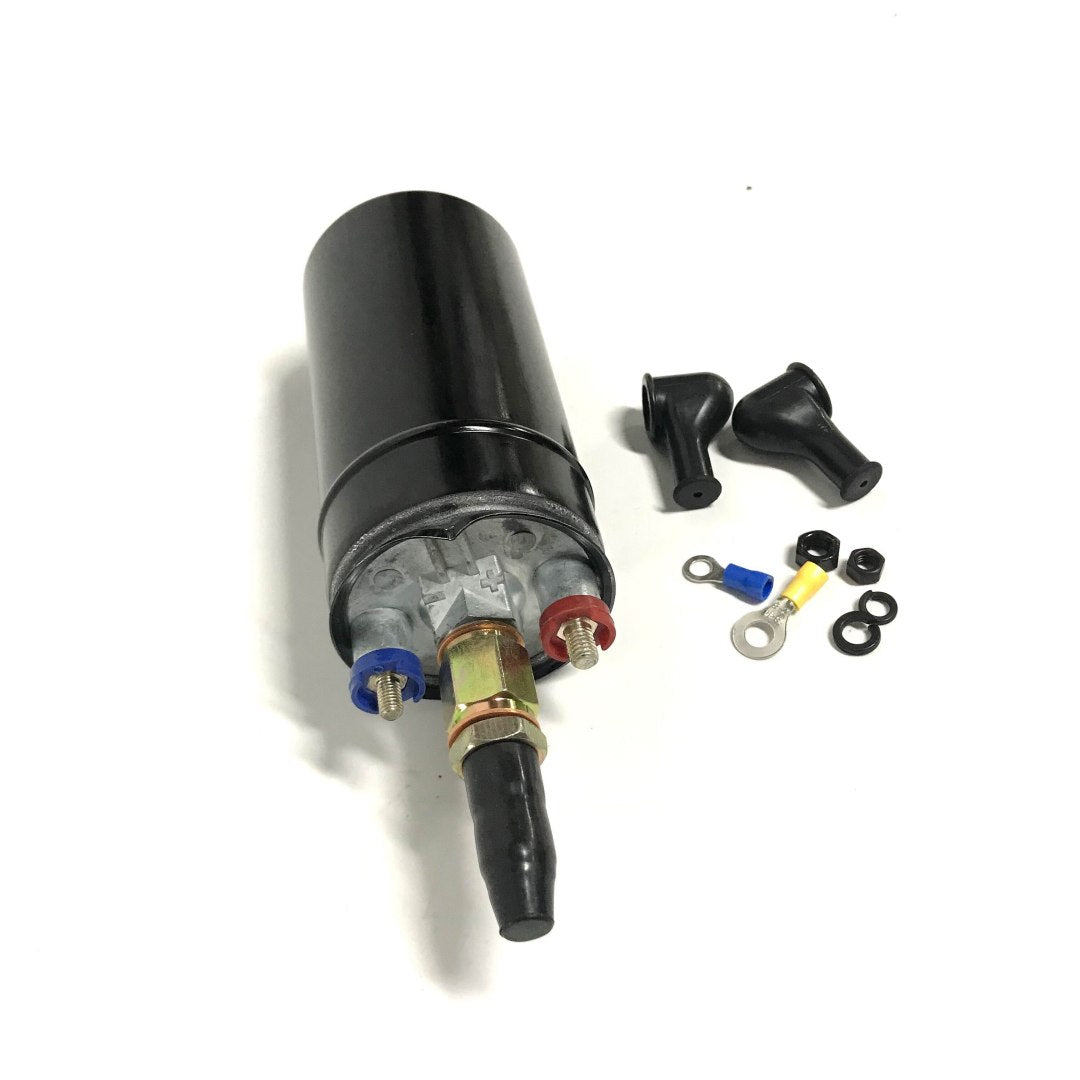

300LPH Racing External Fuel Pump 044 Style Universal E85 0580254044 Black
300LPH Racing External Fuel Pump 044 Style Universal E85 0580254044 Black
Regular price
$69.00 USD
Regular price
$109.00 USD
Sale price
$69.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Popular 044 style fuel pump is designed for high output naturally aspirated and forced induction EFI vehicles. The fuel pump is compatible with Flex Fuel (E85/E90) and all types of gasoline (100% Alcohol fuels may diminish fuel pump life).
And the fuel pump is mounted in rear center of the car or truck, can be installed along with a high performance intank fuel pump or alone.
Features:
| Pump Body Color: Black | Application: Universal |
| Fuel System: Carbureted / EFI | Fuel Type: E85 / Gasoline / Methanol |
| Material: Steel | Weight: 1015 grams |
| Inlet: M18x1.5 metric thread | Outlet: M12x1.5 metric thread |
| Outside Diameter: 60 mm | Electrical: Positive M6, Negative M5 |
Technical data:
| Current: 15A under 75PSI/12V | Reduce high temperature: 30 LPH (8 GPH) |
| Operating voltage: 12V | Operating pressure: 75PSI (5.0Bar) |
| Minimum voltage: 8V | Maximum voltage: 18V |
| Operating temperature range: -20°C - 90°C | Storage temperature range: -40°C - 70°C |
| PRV activation: (0-130PSI) | Flow Rate: 200LPH(53GPH) under 75PSI(5.0 Bar) & 12V |
| Flow rate: 300LPH(80GPH) under 43PSI(3.0 bar) & 12V | Flow rate: 300LPH(80GPH) under 75PSI(5.0Bab) & 13.5V |
| Recommended Horsepower Capabilities: up to 750HP for Naturally Aspirated engines & 650HP for Turbo/Supercharged engines |
* Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.
