K20 2200cc Injectors 210lb 4pcs for 2006-2011 Honda Civic Si K20Z3 2.0L 14mm
K20 2200cc Injectors 210lb 4pcs for 2006-2011 Honda Civic Si K20Z3 2.0L 14mm
No se pudo cargar la disponibilidad de retiro
- FREE SHIPPING!Ship within 1~2 business days;
- E85 Available;
- Datasheet Comes with Injectors;
- Lifetime Warranty;
- Genuine new Bosch injectors sold with the retail box.

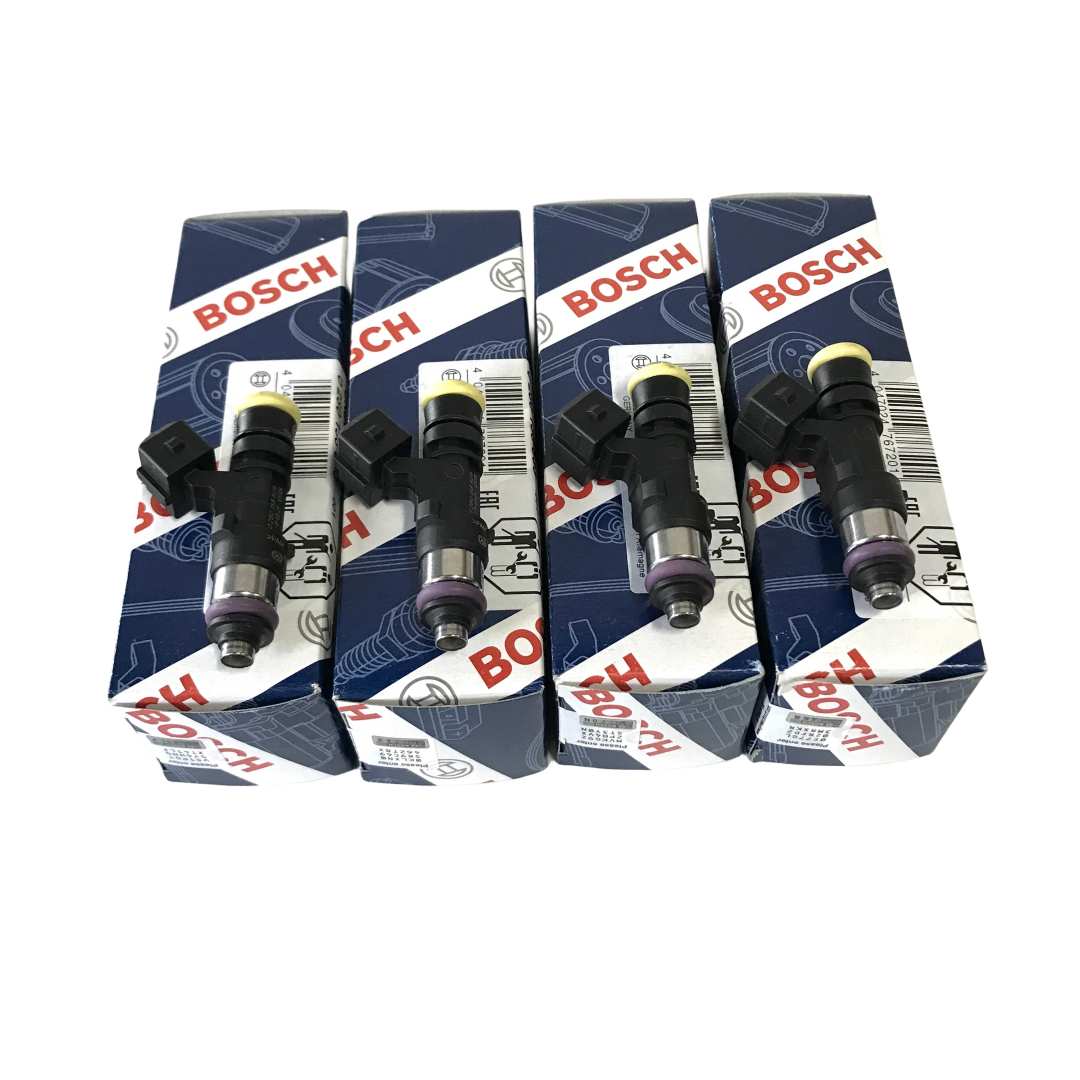

Set of 4 Bosch 210 injectors 2200cc are 65mm overall length, 48mm o-ring seat to seat dimension. The 2200cc injectors 0280158829 include 14mm top and bottom o-rings, plugs and pins. Direct plug and play for 06-11 Honda Civic Si 2.0 K20Z3, 2006-2009 Honda S2000 F22, 2001-2011 Honda/Acura K-Series D17, 2011-2015 Honda CRZ, 2004-2010 Acura TSX, 2002-2009 Acura RSX.
Product Parameters:
*WARNING: The fuel rail and fuel system must be cleaned before install the injectors.
|
Overall length: 65mm |
O-ring seat to seat dimension: 48mm |
|
Top and Bottom o-ring: 14mm |
O-ring centerline to centerline dimension: 53mm |
|
Injector Body Diameter: 15.2mm |
Static flow rate: 210 lb/hr @ 43.5 PSI ( 3 BAR ) w/Gas 2200 cc/min |
|
Name: 2200cc NGI2 |
Part number: 0280158829 |
|
Quantity : 4 Fuel injectors |
Connector: EV1 Minitimer Jetronic – Adapters Available |
|
Dead time: 0.45ms at 14 volts |
Coil resistance: 9.1 Ohms / High Impedance |
|
Spray pattern: Conical (30 degree) |
Spray angle: Neutral (0 degree) |
|
Acceptable fuels: Gas/Petrol, alcohol/methanol, E85, CNG |
|
|
Unacceptable fuels: Gas/Petrol containing MTBE, specifically VP Q16 and VP Import or other MTBE oxygenated fuels |
|
