8pcs Stock LS3 Fuel Injectors for 2008–2013 Chevrolet Corvette E85 Available
8pcs Stock LS3 Fuel Injectors for 2008–2013 Chevrolet Corvette E85 Available
No se pudo cargar la disponibilidad de retiro
- FREE SHIPPING!
- Ship within 1~2 business days;
- Connector: EV6 / EV14 / EV1;
- Flow Matched within 1%;
- Datasheet Comes with Injectors;
- Lifetime Warranty;
- USA Tech Support;

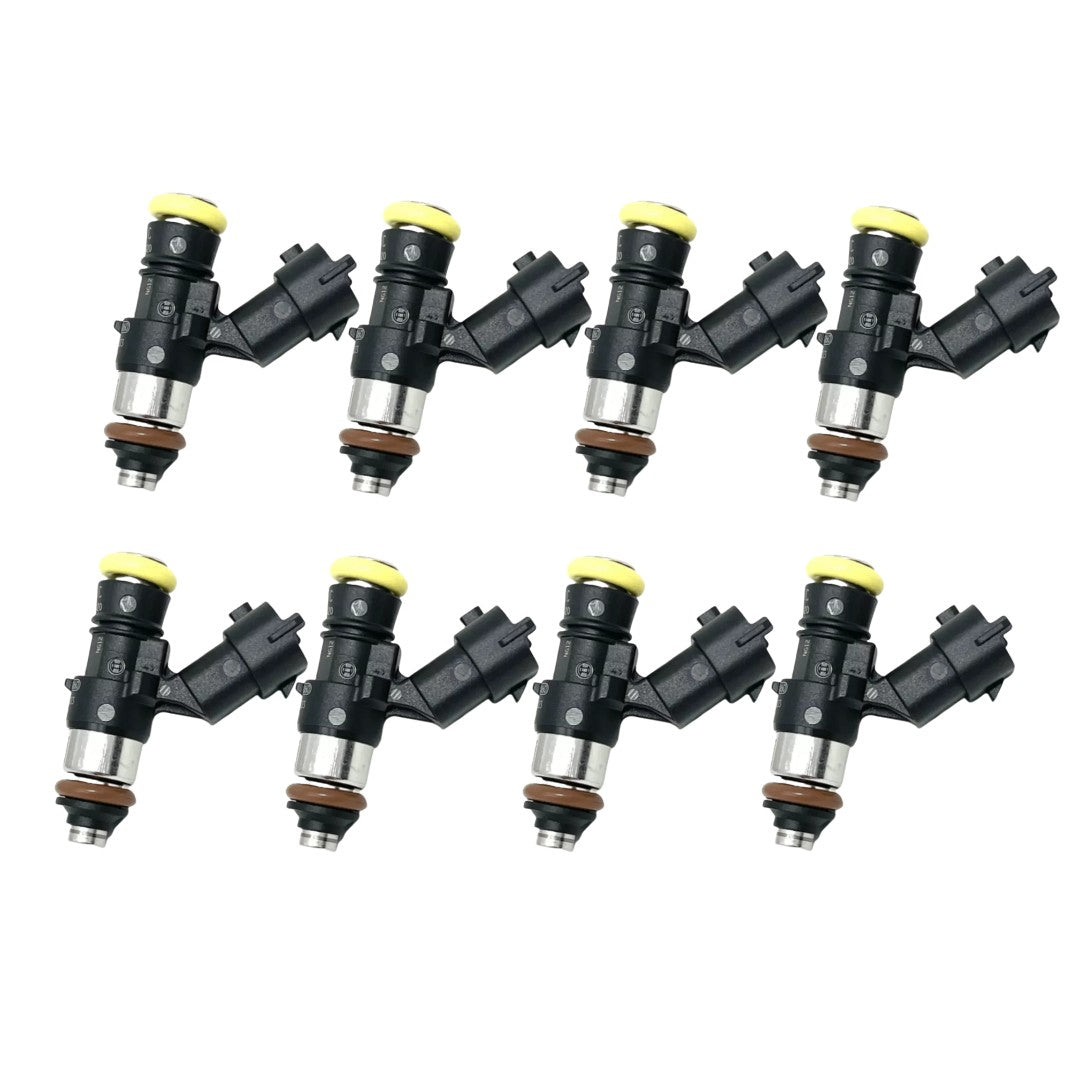

Set of 8 injectors, 14mm top and bottom o-rings, no adapters, plugs and pins. Direct Plug and Play for ls3 engine including 2008-2013 Chevrolet Corvette and Corvette Grand Sport, 2008-2013 Chevrolet Corvette w/ Optional Exhaust, 2010–2015 Chevrolet Camaro SS manual only, 2009-2015 Chevrolet Camaro SS Coupe and Convertible.
Our high impedance fuel injectors are utilizing the latest in fuel injector technology. You can rest assured you are receiving the highest quality injectors with great tune-ability. These short style injectors will be tested by ASNU machine before shipment and the dynamic flow matching is within 1%.
Product Parameters:
*WARNING: The fuel lines must be cleaned before replacing the fuel injectors.
|
Overall length: 49mm |
Orings (top and bottom): 14mm |
|
O-ring centerline to centerline dimension: 38mm |
O-ring seat to seat dimension: 34mm |
|
Condition: 100% brand new |
Test: Leak, flow, pressure, spray |
|
Interior design: Metal and composite plastic |
Filter design: Basket filter design at inlet |
|
Static flow rate: @43.5PSI ( 300kPa ) 80% duty |
Coil resistance: 9 Ohms high impedance |
|
Gain: 0.12ms/MG |
Offset: 0.055ms |
|
Turn on time: 1.14ms @ 14VDC |
Turn off time: 0.85ms @ 300KPa |
|
Amperage: 1.0 Amps |
Pressure: Min 30PSIG/ Max 100PSIG |
|
Includes: plastic packaging box, injectors, o-rings, datasheet, ev6 to ev1/denso/obd2 connectors ( plug and play). (According to the actual situation of the product) |
|
*Please choose the plug or connector according to your actual situation. If you have any questions, please contact us online. We will get back to you soon and help you order the right injectors.
