SEMA 2024 No.22628

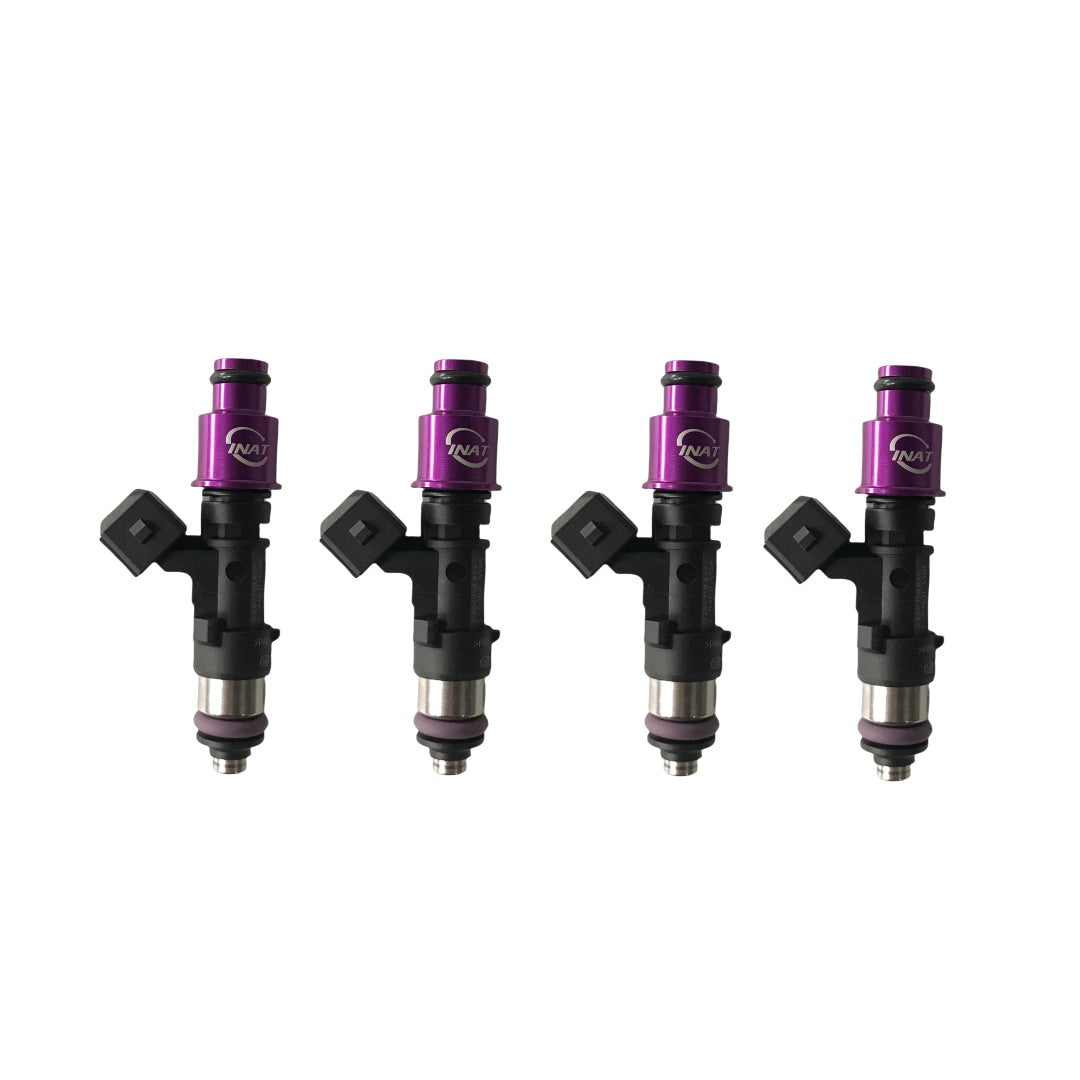

4pcs Injectors for Toyota Celica All-Trac 2.0 AWD Turbo 3SGTE 11mm 1986-1993
4pcs Injectors for Toyota Celica All-Trac 2.0 AWD Turbo 3SGTE 11mm 1986-1993
No se pudo cargar la disponibilidad de retiro
- FREE SHIPPING! Ship within 1~2 business days;
- Connector: EV6, OBD2, OBD1, Denso;
- E85 Available;
- Datasheet Comes with Injectors;
- Flow Matched within 1%;
- Lifetime Warranty;
- USA Tech Support;
Set of 4 injectors including 11mm adapter tops, and 14mm bottom o-ring. Direct plug and play for the 1986-1989 Toyota Celica All-Trac 2.0 AWD Turbo 3SGTE, 1990-1993 Toyota Celica All-Trac 2.0 AWD Turbo 3SGTE, 1991-1995 Toyota MR2 Turbo 2.0 Turbo 3SGTE with 11mm fuel rail top feed applications. Our injectors will be tested by ASNU machine before shipment and the dynamic flow matching is within 1%.
The flow rate of the injectors is from 440cc to 2200cc. If you need other fuel injectors with different flow rates, please contact us online.
Product Parameters:
*WARNING: The fuel rail and fuel system must be cleaned before install the injectors.
|
Overall length: 77mm |
O-ring seat to seat dimension: 60mm |
|
Top o-ring: 11mm ; Bottom o-ring: 14mm |
O-ring centerline to centerline dimension: 65mm |
|
Includes: plastic packaging box, injectors, o-rings, datasheet, ev6 to obd2 connectors ( plug and play), top hats. (According to the actual situation of the product) |
|
|
Condition: 100% brand new |
Test: Leak, flow, pressure, spray |
|
Interior design: Metal and composite plastic |
Filter design: Basket filter design at inlet |
|
Static flow rate: @43.5PSI ( 300kPa ) 80% duty |
Coil resistance: 9 Ohms high impedance |
|
Gain: 0.12ms/MG |
Offset: 0.055ms |
|
Turn on time: 1.14ms @ 14VDC |
Turn off time: 0.85ms @ 300KPa |
|
Amperage: 1.0 Amps |
Pressure: Min 30PSIG/ Max 100PSIG |
