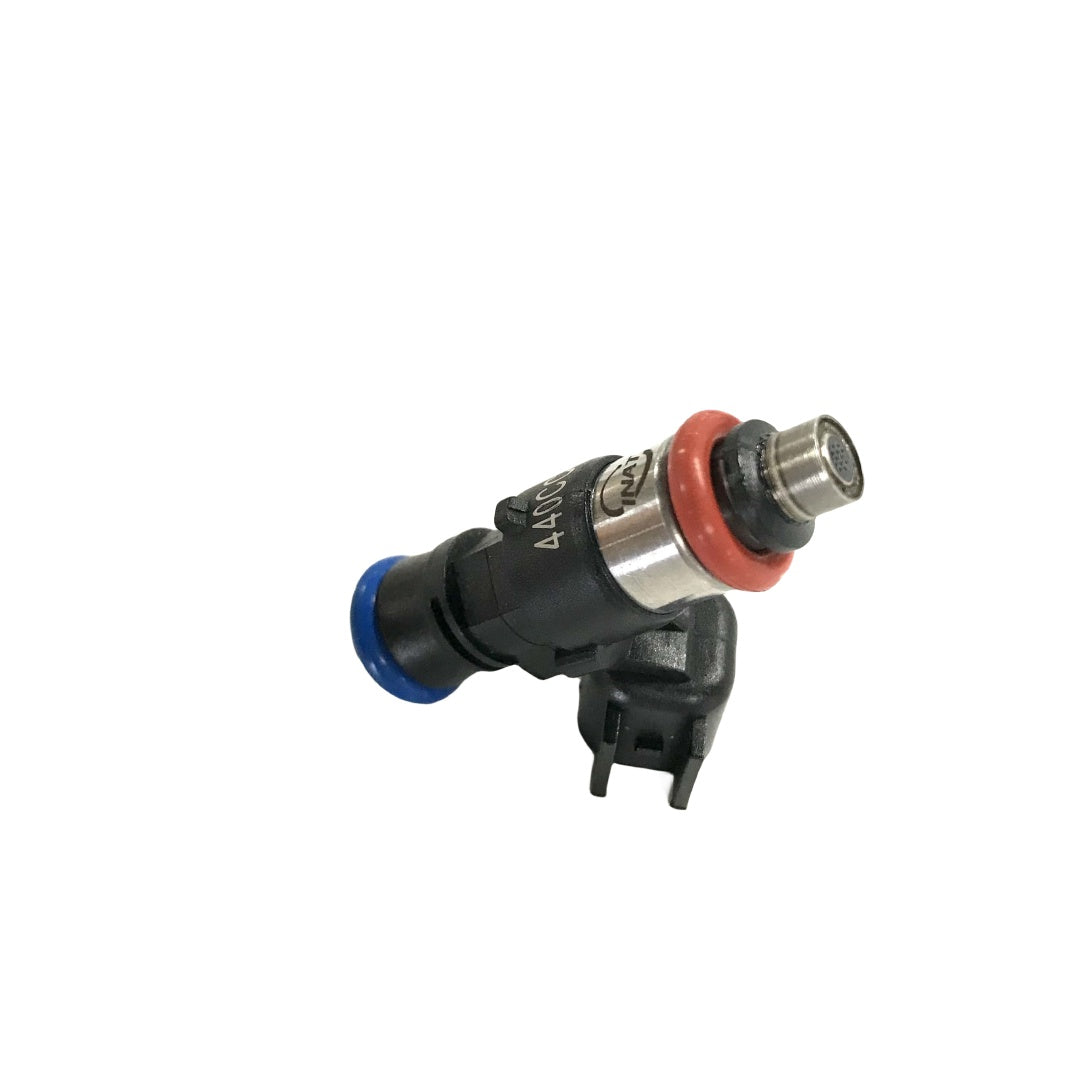

42lb 440cc Fuel Injectors Upgrade for GEN4 6.2 LS3 LSA LS9 L99 Stock
42lb 440cc Fuel Injectors Upgrade for GEN4 6.2 LS3 LSA LS9 L99 Stock
Couldn't load pickup availability
- FREE SHIPPING!Ship within 1~2 business days;
- Connector: EV14 / EV6;
- E85 Available;
- Flow Matched within 1%;
- Datasheet Come with Injectors;
- Lifetime Warranty;
- USA Tech Support;
Our car injectors have high efficiency, good performance, and high cost performance, thereby effectively improving the operation of the engine and reducing overall pollution emissions. High impedance 440cc car fuel Injectors for E85 are widely exported to the United States, Australia, Canada, Peru and other countries with free shipping.
Product Parameters:
*WARNING: The fuel rail and fuel system must be cleaned before install the injectors.
|
Overall length: 49mm |
Orings (top and bottom): 14mm |
|
O-ring centerline to centerline dimension: 38mm |
O-ring seat to seat dimension: 34mm |
|
Includes: plastic packaging box, injectors, o-rings, datasheet, ev6 to ev1 connectors ( plug and play). (According to the actual situation of the product) |
|
*Please make sure that you are choosing the correct length for your fitment needs.
|
Condition: 100% brand new |
Test: Leak, flow, pressure, spray |
|
Interior design: Metal and composite plastic |
Filter design: Basket filter design at inlet |
|
Static flow rate: @43.5PSI ( 300kPa ) 80% duty |
Coil resistance: 9 Ohms high impedance |
|
Gain: 0.12ms/MG |
Offset: 0.055ms |
|
Turn on time: 1.14ms @ 14VDC |
Turn off time: 0.85ms @ 300KPa |
|
Amperage: 1.0 Amps |
Pressure: Min 30PSIG/ Max 100PSIG |
- Find more high-end auto parts at INAT Auto Parts manufacturer!
We have ASNU testing machine to do a strong test on the injector before shipment, and the dynamic flow matching is within 1%. One-stop services and quality assurance!
