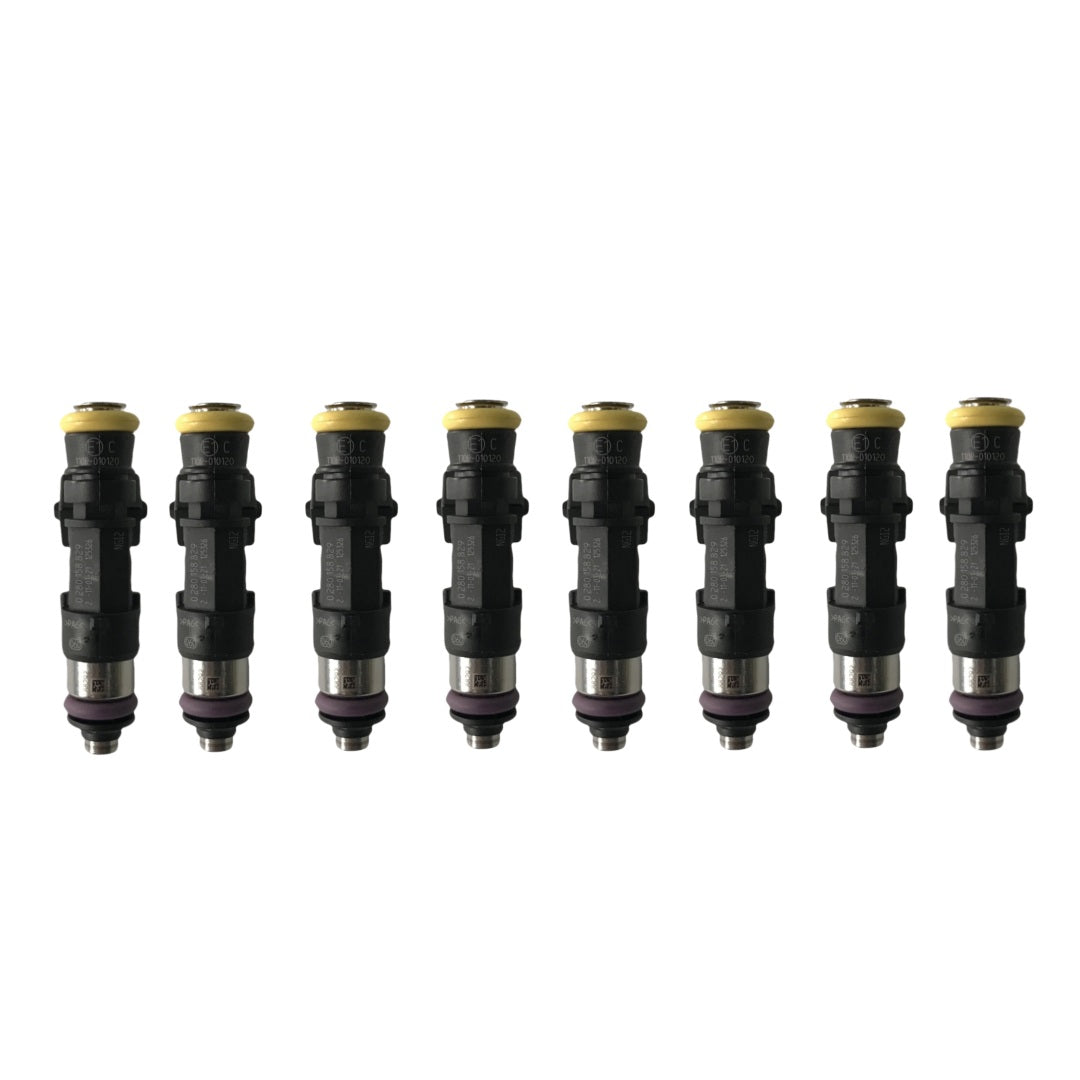

8pcs Stock Fuel Injectors for Jeep Grand Cherokee Trackhawk 6.2L V8 2018-2021
8pcs Stock Fuel Injectors for Jeep Grand Cherokee Trackhawk 6.2L V8 2018-2021
- Note Color (Black/Blue/Red/Purple/Silver);
- FREE SHIPPING!Ship within 1~2 business days;
- E85 Available;
- Connector: EV6 / EV14 / EV1 / Denso / OBD2;
- Flow Matched within 1%;
- Datasheet Comes with Injectors;
- Lifetime Warranty;
- USA Tech Support;
Set of 8 Injectors including 14mm (black/blue/red/purple/silver) adapter tops (42lb~160lb), 14mm bottom o-rings, plugs and pins. The 2200cc injectors are Bosch 210 injectors 0280158829, 65mm overall length, 48mm o-ring seat to seat dimension, 14mm top and buttom o-rings. Direct Plug and Play for the 2015-2017 Dodge Challenger SRT Hellcat, 2015-2016 Dodge Charger SRT Hellcat as well as Jeep Grand Cherokee Trackhawk.
The flow rate of the injectors is from 440cc to 2200cc, with popular flow rates such as 850cc, 1000cc, 1050cc, 1250cc, etc. If you need other fuel injectors with different flow rates, please contact us online.
Product Parameters:
*WARNING: The fuel lines must be cleaned before replacing the fuel injectors.
Overall length: 65mm |
Orings (top and bottom): 14mm |
O-ring centerline to centerline dimension: 53mm |
O-ring seat to seat dimension: 48mm |
Condition: 100% brand new |
Test: Leak, flow, pressure, spray |
Interior design: Metal and composite plastic |
Filter design: Basket filter design at inlet |
Static flow rate: @43.5PSI ( 300kPa ) 80% duty |
Coil resistance: 9 Ohms high impedance |
Gain: 0.12ms/MG |
Offset: 0.055ms |
Turn on time: 1.14ms @ 14VDC |
Turn off time: 0.85ms @ 300KPa |
Amperage: 1.0 Amps |
Pressure: Min 30PSIG/ Max 100PSIG |
Includes: plastic packaging box, injectors, o-rings, datasheet, ev6 to ev1/denso/obd2 connectors ( plug and play), top hats. (According to the actual situation of the product) |
*Please choose the plug or connector according to your actual situation. If you have any questions, please contact us online. We will get back to you soon and help you order the right injectors.
