SEMA 2024 No.22628

Set of 8 Stock LS2 E85 Fuel Injectors 850cc 80lb for EV6 EV14

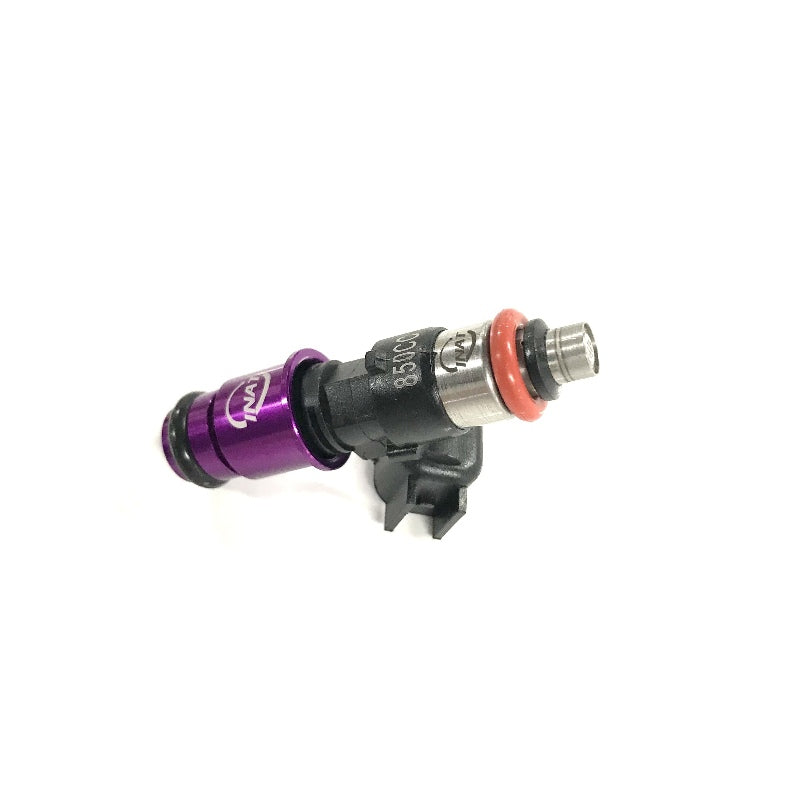

Set of 8 Stock LS2 E85 Fuel Injectors 850cc 80lb for EV6 EV14

Regular price $292.00 USD
Regular price $402.00 USD Sale price $292.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Color
  • Random Color (Black/Blue/Red/Purple/Silver);
  • FREE SHIPPING!Ship within 1~2 business days;
  • E85 Available;
  • Connector: EV6 / EV14;
  • Flow Matched within 1%;
  • Datasheet Comes with Injectors;
  • Lifetime Warranty;
  • USA Tech Support;

INAT LS2 850cc 80lb injectors are uniquely designed to match flow rates within 1%. This matching process provides excellent cylinder-to-cylinder consistency. The matching process combined with this injector's quick response and linearity results in amazing idle quality, excellent driveability and smoothness not found in other injectors of this size.

Product Parameters:

*WARNING: Before using the fuel injectors, the fuel lines must be cleaned.

Overall length: 65mm

O-ring seat to seat dimension: 48mm

Top/Bottom o-ring: 14mm

O-ring centerline to centerline dimension: 53mm

Includes: plastic packaging box, injectors, o-rings, datasheet, ev6 to ev1/denso/obd2 connectors ( plug and play), top hats. (According to the actual situation of the product)

*Please choose the plug or connector according to your actual situation. If you have any questions, please contact us online. We will get back to you soon and help you order the right injectors.

Condition: 100% brand new

Test: Leak, flow, pressure, spray

Interior design: Metal and composite plastic

Filter design: Basket filter design at inlet

Static flow rate: @43.5PSI ( 300kPa ) 80% duty

Coil resistance: 9 Ohms high impedance

Gain: 0.12ms/MG

Offset: 0.055ms

Turn on time: 1.14ms @ 14VDC

Turn off time: 0.85ms @ 300KPa

Amperage: 1.0 Amps

Pressure: Min 30PSIG/ Max 100PSIG

- INAT Auto Parts specializes in high-end auto parts for more than ten years, especially fuel injectors. We have ASNU testing machine to do a strong test on the injector before shipment, and the dynamic flow matching is within 1%. One-stop services and quality assurance!

- These ls injectors can be installed directly into LS2 engines and other applications using LS2 size/height injectors. They are the correct size (shorter than common LS1/LS6 injectors) and have the correct EV6/USCAR connectors for easy insertion.
