SEMA 2024 No.22628

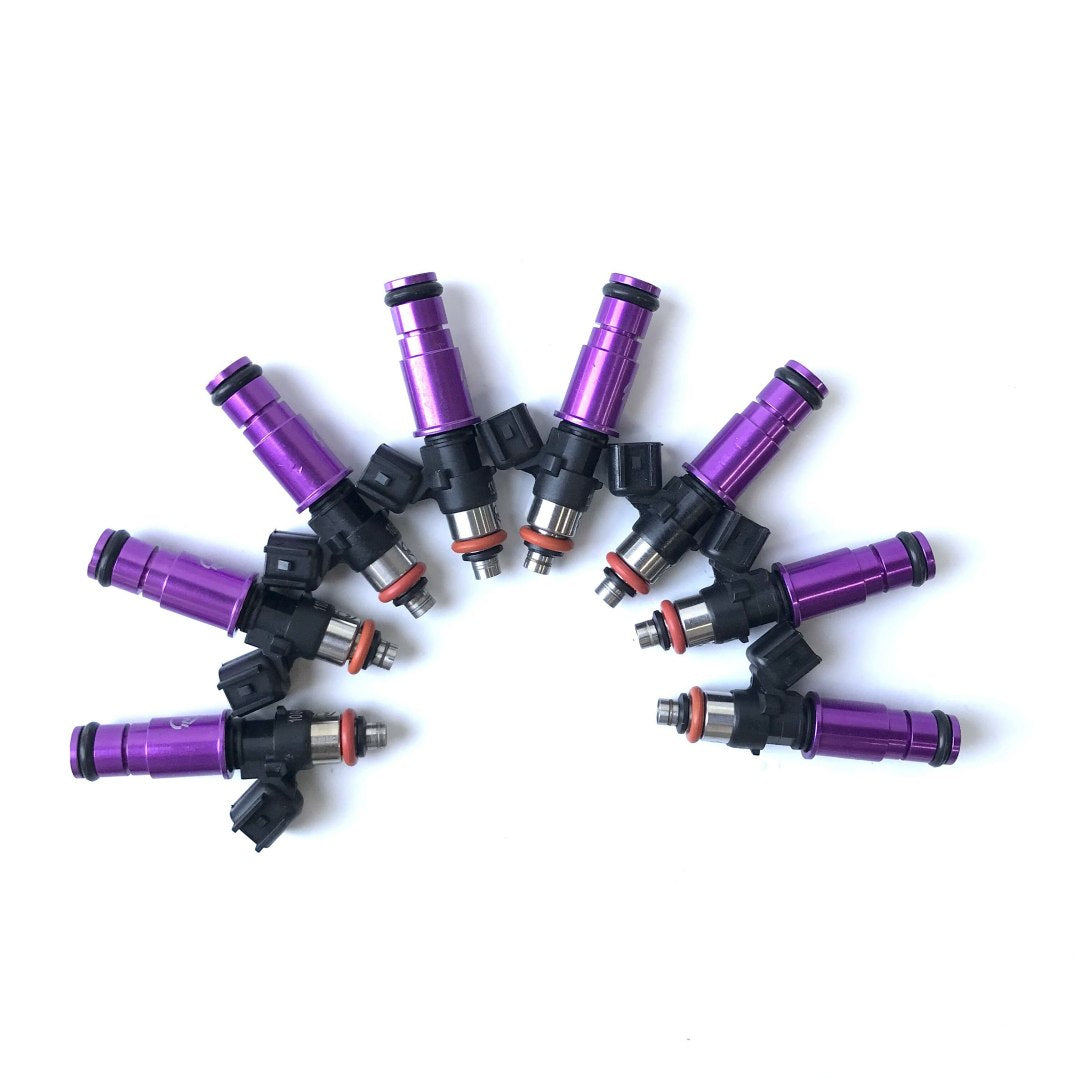

8pcs 650cc LS1 Injectors 60lb for 5.7L 1997-2004 Chevrolet Corvette C5

8pcs 650cc LS1 Injectors 60lb for 5.7L 1997-2004 Chevrolet Corvette C5

Regular price $276.00 USD
Sale price $276.00 USD
Sale Sold out
Shipping calculated at checkout.
Adapter
  • FREE SHIPPING!Ship within 1~2 business days;
  • Connector: EV6 / EV1;
  • E85 Available;
  • Flow Matched within 1%;
  • Datasheet Comes with Injectors;
  • Lifetime Warranty;
  • USA Tech Support;

Set of 8 60lb injectors include 14mm top and bottom o-rings. Direct plug and play for 5.7L LS1 engine GM Gen III small-block. The LS1 engine was employed in a number of General Motors vehicles including 1997-2004 Chevrolet Corvette C5, 1998-2002 Pontiac Firebird Formula, Trans Am, 1998-2002 Chevrolet Camaro Z28, 1998-2002 Chevrolet Camaro SS, 2004 Pontiac GTO, 2001-2004 HSV GTO, 1999-2005 Holden Statesman, 2001-2005 Holden Monaro.

1. Product Parameters:

*WARNING: The fuel lines must be cleaned before replacing the fuel injectors.

Overall length: 77mm

O-ring seat to seat dimension: 60mm

Top and Bottom o-ring: 14mm

O-ring centerline to centerline Dimension: 65mm

Condition: 100% brand new

Test: Leak, flow, pressure, spray

Interior design: Metal and composite plastic

Filter design: Basket filter design at inlet

Static flow rate: @43.5PSI ( 300kPa ) 80% duty

Coil resistance: 9 Ohms high impedance

Gain: 0.12ms/MG

Offset: 0.055ms

Turn on time: 1.14ms @ 14VDC

Turn off time: 0.85ms @ 300KPa

Amperage: 1.0 Amps

Pressure: Min 30PSIG/ Max 100PSIG


2. Vehicle Compatibility:

Engine

Model

LT1

1992–1996 Chevrolet Corvette C4 LT1
1993–1997 Chevrolet Camaro Z28, B4C and SS LT1
1993–1997 Pontiac Firebird Formula, Trans Am, and Firehawk LT1
1994-1996 Buick Roadmaster
1994–1996 Chevrolet Caprice
1994–1996 Chevrolet Caprice Police Package
1994–1996 Chevrolet Impala SS
1994–1996 Chevrolet Caprice Wagon
1994–1996 Cadillac Fleetwood

LT4 (Gen II)

1996 Chevrolet Corvette only when equipped with 6-speed manual transmission
1997 Chevrolet Camaro SLP/LT4 SS 6-speed
1997 Pontiac Firebird SLP/LT4 Firehawk 6-speed

LS1

1997-2004 Chevrolet Corvette C5
1998-2002 Pontiac Firebird Formula, Trans Am
1998-2002 Chevrolet Camaro Z28
1998-2002 Chevrolet Camaro SS
2004 Pontiac GTO
2001-2004 HSV GTO
1999-2005 Holden Statesman
2001-2005 Holden Monaro

LS6

2001-2004 C5 Chevrolet Corvette Z06
2004–2005 Cadillac CTS-V Series
2007 SSC Ultimate Aero TT


* We have ASNU testing machine to do a strong test on the injector before shipment, and the dynamic flow matching is within 1%. One-stop services and quality assurance!
