8pcs LS2 850cc Injectors for 2006–2007 Cadillac CTS V-Series
8pcs LS2 850cc Injectors for 2006–2007 Cadillac CTS V-Series
Couldn't load pickup availability
- FREE SHIPPING OVER $100!Ship within 1~2 business days;
- Connector: EV6, EV14, EV1, Denso, OBD2;
- E85 Available;
- Datasheet Comes with Injectors;
- Flow Matched within 1%;
- Lifetime Warranty;
- USA Tech Support;

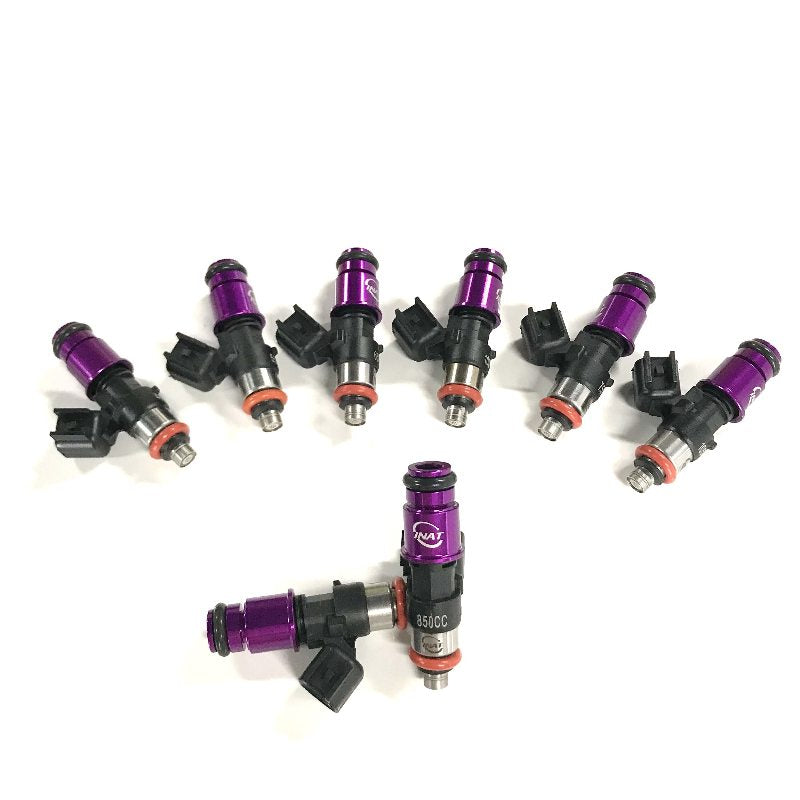

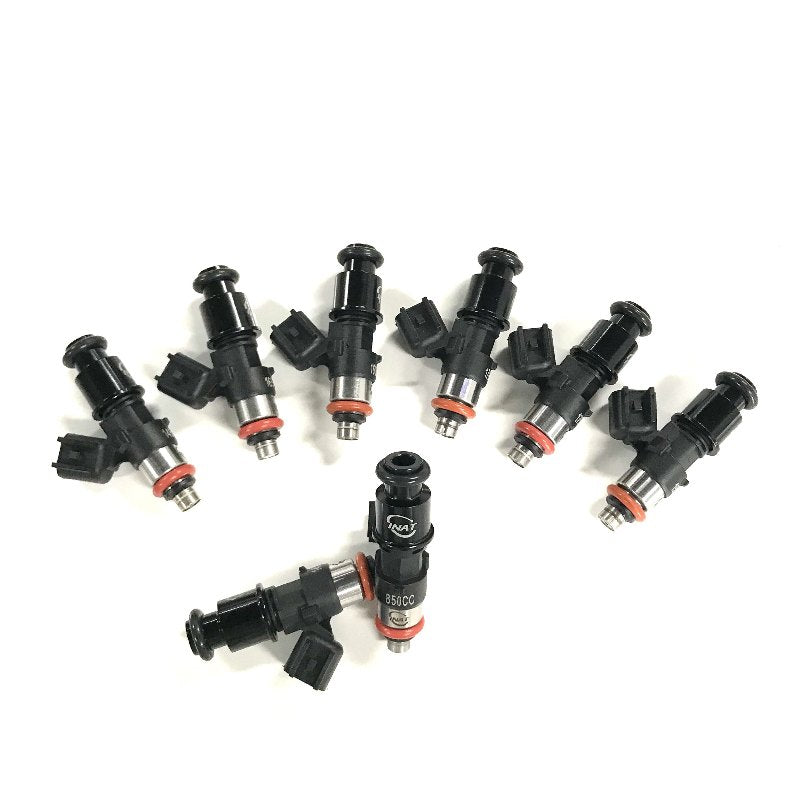

Set of 8 80lb injectors including 14mm (black/red/purple) adapter tops , 14mm bottom o-rings, plugs and pins. Direct plug and play for 2006–2007 Cadillac CTS V-Series, 2006–2009 Chevrolet TrailBlazer SS, 2005-2006 Chevrolet SSR, 2005-2006 Holden Monaro family with LS2 engine.
1. Product Parameters:
*WARNING: The fuel lines must be cleaned before replacing the fuel injectors.
*Please choose the plug or connector according to your actual situation. If you have any questions, please contact us online. We will get back to you soon and help you order the right injectors.
|
Overall length: 65mm |
O-ring seat to seat dimension: 48mm |
|
Top / Bottom o-ring: 14mm |
O-ring centerline to centerline dimension: 53mm |
|
Includes: plastic packaging box, injectors, o-rings, datasheet, ev6 to ev1/denso/obd2 connectors ( plug and play), top hats. (According to the actual situation of the product) |
|
|
Condition: 100% brand new |
Test: Leak, flow, pressure, spray |
|
Interior design: Metal and composite plastic |
Filter design: Basket filter design at inlet |
|
Static flow rate: @43.5PSI ( 300kPa ) 80% duty |
Coil resistance: 9 Ohms high impedance |
|
Gain: 0.12ms/MG |
Offset: 0.055ms |
|
Turn on time: 1.14ms @ 14VDC |
Turn off time: 0.85ms @ 300KPa |
|
Amperage: 1.0 Amps |
Pressure: Min 30PSIG/ Max 100PSIG |
